Built for strength, durability, and reliability, Tidal Mooring Shackles are specifically designed to meet the rigorous demands of the marine and aquaculture industries. With a wide-mouth design, these shackles allow for the passage of heavy-duty hawser thimbles and large synthetic rope thimbles, eliminating the need for oversized, heavy shackles that can be difficult to handle.
Types of Mooring Shackles
Wide Mouth Mooring Shackle
Engineered primarily for the aquaculture industry, this high-tensile steel shackle provides a wider throat opening to accommodate heavy-duty hawser thimbles and large synthetic rope thimbles without having to size up to a larger shackle or increase weight of the shackle.
Tidal Mooring Shackles are manufactured with alloy steel and quenched tempered to provide our customers with safety and reliability they count on. Every shackle is manufactured and tested to meet ISO9001 standards ensuring the product to be void of hydrogen embrittlement.
| Tidal Part # | Description | MBL (t) | e (mm) | a (mm) | c (mm) | d (mm) | d1 (mm) | d2 (mm) |
|---|---|---|---|---|---|---|---|---|
| 123-0028 | 28 T Mooring Shackle | 28 | 58 | 44 | 19 | 47 | 22 | 47 |
| 123-0040 | 40 T Mooring Shackle | 40 | 68 | 52 | 22 | 50 | 25 | 50 |
| 123-0060 | 60 T Mooring Shackle | 60 | 89 | 62 | 28 | 58 | 28 | 58 |
| 123-0090 | 90 T Mooring Shackle | 90 | 98 | 82 | 32 | 72 | 32 | 72 |
| 123-0150 | 150 T Mooring Shackle | 150 | 140 | 126 | 50 | 105 | 50 | 105 |
Safety Anchor Shackle
Designed for secure anchoring in marine and industrial applications, the Safety Anchor Shackle provides a strong, stable connection with an added locking mechanism to prevent accidental pin release.
| A | WLL (tons) | B Pin Diameter | C | D | E | F | Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 1/4″ | 1/2 | 5/16″ | 1.14″ | 0.49″ | 0.7″ | 0.75″ | 0.12 |
| 5/16″ | 3/4 | 3/8″ | 1.23″ | 0.53″ | 0.83″ | 0.8″ | 0.18 |
| 3/8″ | 1 | 7/16″ | 1.41″ | 0.69″ | 0.98″ | 1.01″ | 0.32 |
| 7/16″ | 1-1/2 | 1/2″ | 1.7″ | 0.72″ | 1.06″ | 1.13″ | 0.45 |
| 1/2″ | 2 | 5/8″ | 1.83″ | 0.83″ | 1.18″ | 1.25″ | 0.68 |
| 5/8″ | 3-1/4 | 3/4″ | 2.36″ | 1.06″ | 1.55″ | 1.67″ | 1.36 |
| 3/4″ | 4-3/4 | 7/8″ | 2.76″ | 1.24″ | 1.78″ | 1.98″ | 2.24 |
| 7/8″ | 6-1/2 | 1″ | 3.29″ | 1.42″ | 2.09″ | 2.25″ | 3.5 |
| 1″ | 8-1/2 | 1-1/8″ | 3.69″ | 1.75″ | 2.35″ | 2.66″ | 5 |
| 1-1/8″ | 9-1/2 | 1-1/4″ | 4.23″ | 1.8″ | 2.71″ | 2.79″ | 7.65 |
| 1-1/4″ | 12 | 1-3/8″ | 4.63″ | 2.12″ | 3.01″ | 3.15″ | 10.4 |
| 1-3/8″ | 13-1/2 | 1-1/2″ | 5.17″ | 2.3″ | 3.32″ | 3.6″ | 13.8 |
| 1-1/2″ | 17 | 1-5/8″ | 5.67″ | 2.39″ | 3.63″ | 3.85″ | 17.9 |
| 1-3/4″ | 25 | 2″ | 7.06″ | 2.96″ | 4.23″ | 4.99″ | 27.9 |
| 2″ | 35 | 2-1/4″ | 7.75″ | 3.31″ | 5.11″ | 5.59″ | 42.7 |
| 2-1/2″ | 55 | 2-3/4″ | 10.25″ | 4″ | 5.75″ | 7″ | 85 |
| 3″ | 85 | 3-1/4″ | 13″ | 5″ | 6.5″ | 7.88″ | 125 |

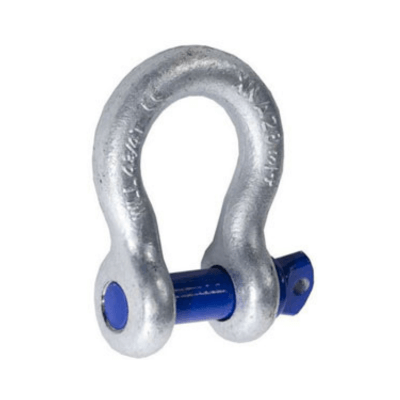

Screw Pin Shackle
A versatile and easy-to-use option, the Screw Pin Shackle allows for quick attachment and removal, making it ideal for temporary or adjustable rigging setups.
| A | WLL (tons) | B Pin Diameter | C | D | E | F | Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 1/4″ | 1/2 | 5/16″ | 1.14″ | 0.49″ | 0.7″ | 0.75″ | 0.12 |
| 5/16″ | 3/4 | 3/8″ | 1.23″ | 0.53″ | 0.83″ | 0.8″ | 0.18 |
| 3/8″ | 1 | 7/16″ | 1.41″ | 0.69″ | 0.98″ | 1.01″ | 0.32 |
| 7/16″ | 1-1/2 | 1/2″ | 1.7″ | 0.72″ | 1.06″ | 1.13″ | 0.45 |
| 1/2″ | 2 | 5/8″ | 1.83″ | 0.83″ | 1.18″ | 1.25″ | 0.68 |
| 5/8″ | 3-1/4 | 3/4″ | 2.36″ | 1.06″ | 1.55″ | 1.67″ | 1.36 |
| 3/4″ | 4-3/4 | 7/8″ | 2.76″ | 1.24″ | 1.78″ | 1.98″ | 2.24 |
| 7/8″ | 6-1/2 | 1″ | 3.29″ | 1.42″ | 2.09″ | 2.25″ | 3.5 |
| 1″ | 8-1/2 | 1-1/8″ | 3.69″ | 1.75″ | 2.35″ | 2.66″ | 5 |
| 1-1/8″ | 9-1/2 | 1-1/4″ | 4.23″ | 1.8″ | 2.71″ | 2.79″ | 7.65 |
| 1-1/4″ | 12 | 1-3/8″ | 4.63″ | 2.12″ | 3.01″ | 3.15″ | 10.4 |
| 1-3/8″ | 13-1/2 | 1-1/2″ | 5.17″ | 2.3″ | 3.32″ | 3.6″ | 13.8 |
| 1-1/2″ | 17 | 1-5/8″ | 5.67″ | 2.39″ | 3.63″ | 3.85″ | 17.9 |
| 1-3/4″ | 25 | 2″ | 7.06″ | 2.96″ | 4.23″ | 4.99″ | 27.9 |
| 2″ | 35 | 2-1/4″ | 7.75″ | 3.31″ | 5.11″ | 5.59″ | 42.7 |
| 2-1/2″ | 55 | 2-3/4″ | 10.25″ | 4″ | 5.75″ | 7″ | 85 |
Frequently Asked Questions
How do I order?
Email us at info@tidalropes.com and let us know what you’re looking for. Our team will contact you with pricing, availability, and next steps.
Do you offer customizations?
We would be happy to provide custom-cut lengths, color options, and markings to meet your specific requirements. Let us know what you need and we can work with you to come up with the right solution for your needs.
Do you provide equipment certification?
Yes, we offer test bed certification, proof loading, and inspection services to ensure compliance with industry standards.
Do you ship across North America?
Yes, we ship our products throughout North America. Shipping costs and delivery times vary based on location and order size. 📞 Contact us for a quote.
I want to support local, are you a Canadian company?
Northwest Tidal is proudly Canadian 🍁, headquartered on the West Coast in Nanaimo, BC. For nearly 50 years, we’ve been supplying high-quality marine and industrial products to industries across North America, built to withstand the toughest conditions.
What industries do you serve?
We supply high-quality marine, industrial, and heavy-duty equipment for industries including fishing, aquaculture, forestry, construction, and offshore operations.
